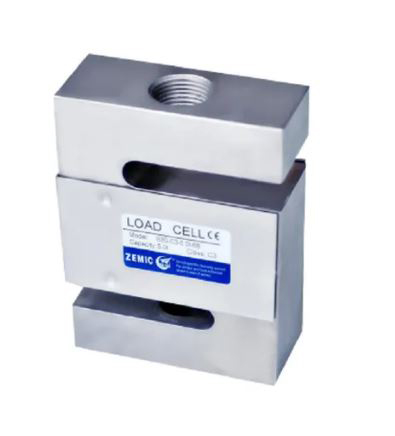

Zemic S Type 500kg Capacity Load Cell | High-Precision Weighing Sensor

Product Overview

The Zemic S Type 500kg Capacity Load Cell is a high-accuracy sensor designed to deliver reliable and precise load measurements for a variety of applications. Ideal for platform scales, hopper scales, force measurement systems, and material testing, the Zemic S Type load cell provides exceptional performance and durability in both industrial and commercial environments.

Key Features

✅ High Precision – Provides accurate and stable load measurement with minimal deviation, ensuring reliable performance.
✅ S-Type Design – Compact S-type design for easy installation in various weighing systems, especially in tight spaces.
✅ Alloy Steel Construction – Manufactured with high-quality alloy steel for maximum strength and resilience.
✅ IP67 Protection – Dustproof and waterproof, designed for use in harsh environments.
✅ Wide Operating Temperature – Performs consistently over a wide temperature range with minimal temperature effects.
✅ Tension and Compression Resistance – Can measure both tension and compression forces, adding versatility for different applications.
✅ Easy to Install – 4-wire configuration for simple integration into existing systems.
✅ Long-Term Durability – Built to last, providing long-term reliability even in demanding conditions.

Technical Specifications

Load Cell Type: S Type
Capacity: 500 kg
Material: Alloy Steel
Protection Class: IP67 (Dustproof & Waterproof)
Accuracy: 0.03% to 0.05% (depending on model)
Operating Temperature: -20°C to +70°C
Output Signal: 2mV/V
Input Resistance: 400Ω
Excitation Voltage: 10V DC
Connection Type: 4-wire configuration
Applications: Platform scales, force measurement, tank/silo weighing, material handling, and more.

Applications

✔ Platform Scales & Weighing Systems
✔ Hopper & Silo Weighing
✔ Material Testing & Force Measurement
✔ Industrial Machinery Monitoring
✔ Automation Systems
✔ Truck Scales & Weighbridges

Why Choose the Zemic S Type 500kg Load Cell?

The Zemic S Type 500kg Capacity Load Cell offers outstanding precision and long-lasting durability for various industrial and commercial weighing applications. With its versatile S-type design, high-quality construction, and IP67 protection, this load cell guarantees consistent performance and reliable data collection for a wide range of systems.

📌 Order Now & Improve Your Weighing Accuracy with Precision Load Cells!
