| Description: | Zemic Shear Beam Load Cell | High-Accuracy Weighing Sensor
Product Overview
The Zemic Shear Beam Load Cell is a high-performance sensor designed for accurate and reliable load measurement in a wide range of weighing applications. Known for its exceptional durability and precision, this load cell is ideal for platform scales, tank weighing systems, industrial machines, and silo weighing. With advanced technology and a rugged design, it provides consistent performance in both indoor and outdoor environments.
Key Features
✅ High Accuracy – Provides accurate and stable measurement with low hysteresis and creep.
✅ Durable Construction – Built with alloy steel or stainless steel, offering superior strength and resistance to harsh conditions.
✅ Compact Design – Space-efficient, making it ideal for varied weighing systems with limited space.
✅ Environmental Protection – IP67 protection rating, making it suitable for dusty and wet environments.
✅ Wide Load Range – Available in various capacities ranging from 10 kg to 100 tons, accommodating different load requirements.
✅ Temperature Compensation – Operates accurately across a wide temperature range, with minimal temperature effects on the measurement.
✅ Easy Installation – Compact and straightforward to install in existing systems, reducing downtime.
✅ Tension & Compression Resistance – Capable of handling both tension and compression forces, providing versatility for various applications.
Technical Specifications
- Load Cell Type: Shear Beam
- Material: Alloy Steel or Stainless Steel
- Capacity: 10 kg to 100 tons (customizable)
- Protection Class: IP67 (Dustproof & Waterproof)
- Accuracy: 0.03% to 0.05% (depending on model)
- Operating Temperature: -20°C to +70°C
- Output Signal: 2mV/V (standard)
- Input Resistance: 400Ω
- Excitation Voltage: 10V DC
- Connection Type: 4-wire
- Applications: Platform scales, tank/silo weighing, industrial machinery, and more.
Applications
✔ Platform & Floor Scales
✔ Silo & Tank Weighing
✔ Hopper & Conveyor Weighing
✔ Industrial Equipment Monitoring
✔ Weighbridges & Truck Scales
✔ Material Handling Systems
Why Choose the Zemic Shear Beam Load Cell?
The Zemic Shear Beam Load Cell offers precise load measurement with outstanding reliability and long-term durability. Designed for tough environments, it delivers consistent accuracy for various industrial and commercial applications. Whether you’re looking to enhance your weighing system or monitor machinery performance, this load cell guarantees superior performance and accurate data collection.
📌 Order Now & Ensure Precision in Your Weighing Systems!
SEO Keywords & Hashtags for Google Search:
Keywords:
- Zemic Shear Beam Load Cell
- Shear Beam Load Cell
- Alloy Steel Load Cell
- Stainless Steel Shear Beam Load Cell
- Industrial Load Cells
- Weighing Sensor Zemic
- High-Precision Load Cell
- Zemic Load Cell for Platform Scales
- Load Cell for Tank Weighing
- Shear Beam Load Cell for Weighbridges
Hashtags:
- #ZemicLoadCell
- #ShearBeamLoadCell
- #LoadCell
- #WeighingSensor
- #PrecisionWeighing
- #IndustrialWeighing
- #LoadCellTechnology
- #AlloySteelLoadCell
- #StainlessSteelLoadCell
- #WeighingSystem
Would you like to add pricing, images, or a “Buy Now” button for the website? 🚀

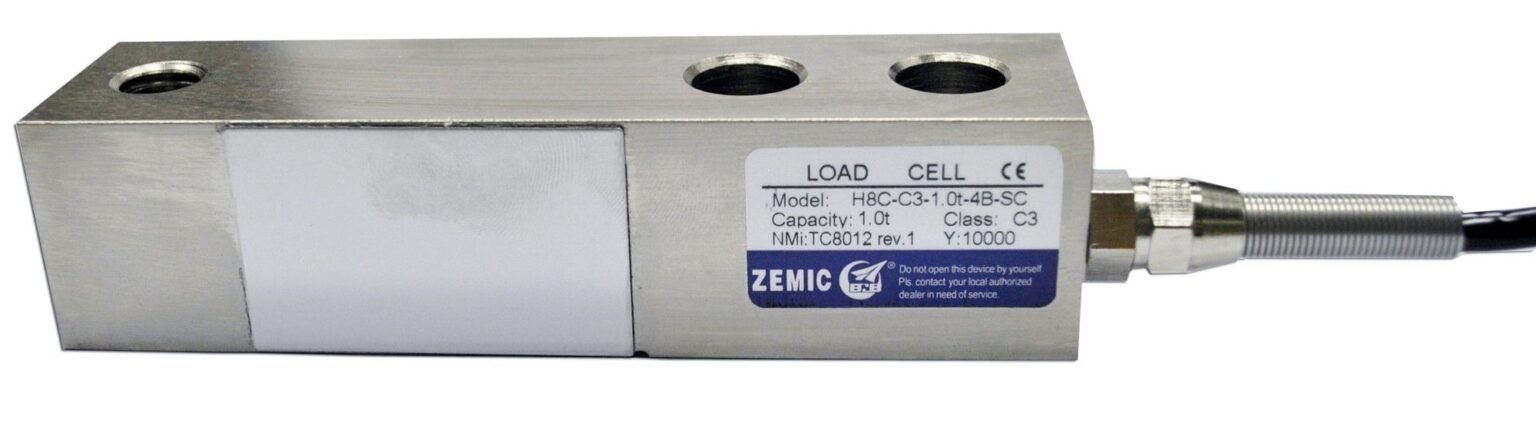

H8C nickel plated alloy steel shear beam load cell, OIML approved (100kg-10t)
- Nickel plated alloy steel IP67 shear beam load cell.
- 100kg and 250kg are bending beam load cells.
- Suitable for platform weighing, container and tank scales, bed weighing, etc.
- High accuracy.
- High reliability.
- Current calibrated (sc-option).
- Optional T-hole force introduction available (W6 version)
- Optionally with through hole (W4 version)
OIML: test certificate no. TC8012 Revision 1 C of C no R60/2000-NL1-12.12
NTEP: Certificate no. 12-028
ZEMIC B8D 1~5ton Stainless Steel Weighing Load Cell OIML Approved
| Brand Name : |
ZEMIC |
| Model Number : |
B8D |
| Certification : |
OIML |
| Place of Origin : |
CHINA |
| MOQ : |
10pcs |
| Price : |
USD60~USD64 |
| Supply Ability : |
500pcs/m |
| Delivery Time : |
15~25days |
| Packaging Details : |
Carton |
| Item : |
stainless steel load cell |
| Capacity : |
500kg to 5ton, 250lb to 20KLB |
| IP grade : |
waterproof IP68 |
| Output : |
Analog Sensor |
| Usage : |
Pressure Sensor |
| Theory : |
Resistance Sensor |
|
|---|
